I. Core Product Parameters

1. Base Material & Specifications

• Main Box Material



  Optional: 250g–450g ivory board, grey back white board, kraft paper, specialty art paper (touch paper, pearlescent paper).



  Custom imported paper available (Swedish ivory board, Japanese washi paper, etc.).



  For enhanced load-bearing, 120g–250g corrugated medium (E-flute, B-flute, EB-flute) can be laminated to improve compression resistance.

• Lining Material



  Optional: 150g–200g ivory board, EVA foam, pearl cotton, flocking fabric, sponge.



  Custom shockproof, moisture-proof, anti-static lining structures available.

• Tolerance Standards



  Paper grammage tolerance: ±5g/㎡



  Thickness tolerance: ±0.02mm



  Complies with GB/T 10335.3-2004 paper standards.


2. Dimension Specifications

• Custom Sizes: Any custom size (L × W × H) accepted.



  Common range: 5cm×5cm×5cm – 50cm×30cm×40cm



  Dimensional tolerance: ±0.3mm.

• Lid & Base Fitting Precision



  Gap between upper lid and base ≤1mm; no looseness or jamming after closing.



  Misalignment ≤0.5mm.

• Box Wall Thickness



  Pure paperboard structure: 0.3mm–0.8mm



  Laminated corrugated structure: 1.2mm–2.5mm



  Thickness reinforcement available upon request.


3. Structural Parameters

• Box Structure



  Standard lid & base (full / half cover), snap-lock lid & base, magnetic lid & base, drawer-style lid & base.



  Custom composite structures supported.

• Bonding Method



  Food-grade white latex (temperature resistance: -10℃ to 60℃);



  Hot-melt adhesive (instant curing, bonding strength ≥1.5N/cm).



  Key areas double-reinforced to prevent debonding.

• Load-Bearing Performance



  Vertical load capacity of empty box ≥5kg.



  Stackable up to 3 layers without deformation (full load at max size).



  Corner compression resistance ≥3N/mm.


4. Environmental Standards

• FSC-certified paper; recyclable and biodegradable.



  No optical brightener (fluorescent reflectance ≤0.5%).

• Eco-friendly adhesives and inks, compliant with GB/T 30986-2014 Packaging Materials – Terminology.



  Heavy metal content (Pb, Hg, Cd, etc.) ≤10mg/kg.



  No irritating odor.


II. Core Technologies & Processes

1. Printing Process

• Printing Methods



  Offset printing (CMYK, spot color; resolution ≥300dpi, color reproduction ≥95%);



  Flexo printing (for large solid areas, uniform ink layer);



  Screen printing (for embossed effects and special colors);



  Digital printing (small-batch custom, fast delivery).

• Printing Quality



  Clear patterns, no ghosting or missing printing.



  Color deviation ΔE ≤2.0.



  Smooth text edges, no burrs.



  Surface abrasion resistance ≥50 dry rubs.

• Registration Accuracy



  Multi-color registration deviation ≤0.1mm.



  Deviation between pattern and box edge ≤0.2mm.


2. Surface Finishing (Optional)

• Lamination: Gloss film (bright, waterproof, scratch-resistant); matte film (elegant, soft texture).



  Film thickness: 12μm–25μm.



  Adhesion ≥0.8N/15mm (peel test).

• Hot Stamping: Gold, silver, color gold, holographic foil.



  Clean edges, no overflow or missing stamping.



  Fastness ≥30 rubs.



  Partial or full-area stamping available.

• UV Coating: Local UV (highlight design, strong 3D effect); full UV (glossy, wear-resistant, anti-fouling).



  UV hardness ≥2H, no yellowing.

• Embossing / Debossing: 3D texture via mould pressing; clear, full impression; no cracking or deformation.



  Ideal for logos and textures.

• Lamination + Hot Stamping: Lamination first, then stamping for premium appearance.



  Strong adhesion, no peeling.


3. Die-Cutting & Creasing

• Die-Cutting Precision



  Laser or steel moulds used.



  Die-cut deviation ≤0.1mm.



  Smooth cuts, no burrs, no uncut edges or flashes.

• Creasing Process



  Special creasing rule ensures sharp, straight creases.



  Folding angle: 90°±2°.



  No cracking or breaking after repeated folding (10+ times).

• Layout Optimization



  Material utilization ≥90% to reduce cost and improve efficiency.


4. Forming & Assembly

• Automatic Forming



  Full-automatic lid & base machine.



  Output ≥30 pcs/min.



  High dimensional consistency.

• Hand Assembly



  Used for complex structures or small batches.



  Each process inspected to ensure smooth closing, stable structure, no skew or warping.

• Quality Control



  100% full inspection: no stains, scratches, defects.



  All dimensions, fitting, printing meet order requirements.



  Defective products 100% reworked.


5. Custom Process Expansion

• Window Design: Clear PVC sheet (0.3mm–0.5mm thickness, light transmittance ≥90%).



  Smooth edges, firm sealing.

• Handle: Paper handle / ribbon handle.



  Load capacity ≥3kg, securely attached.

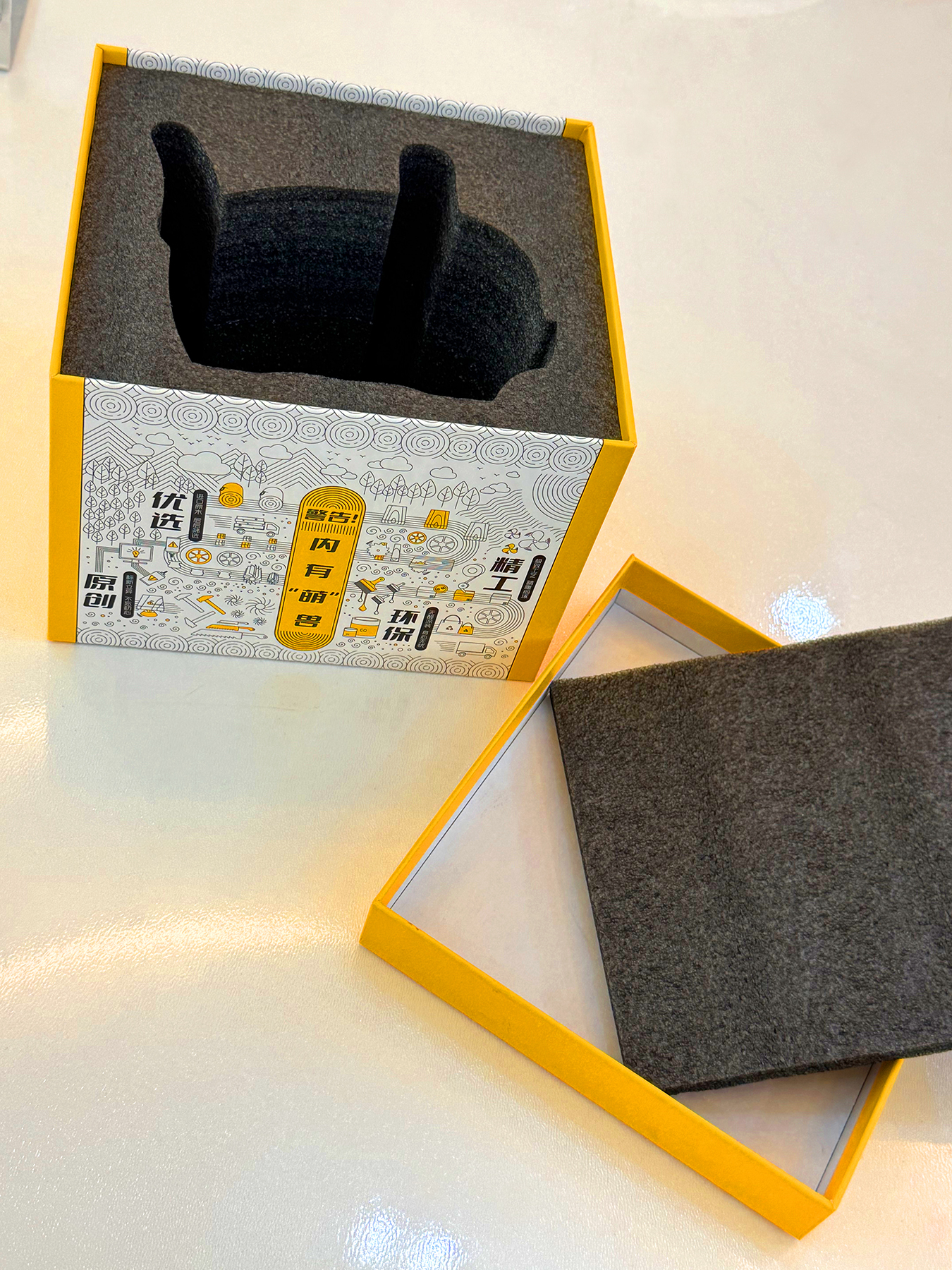

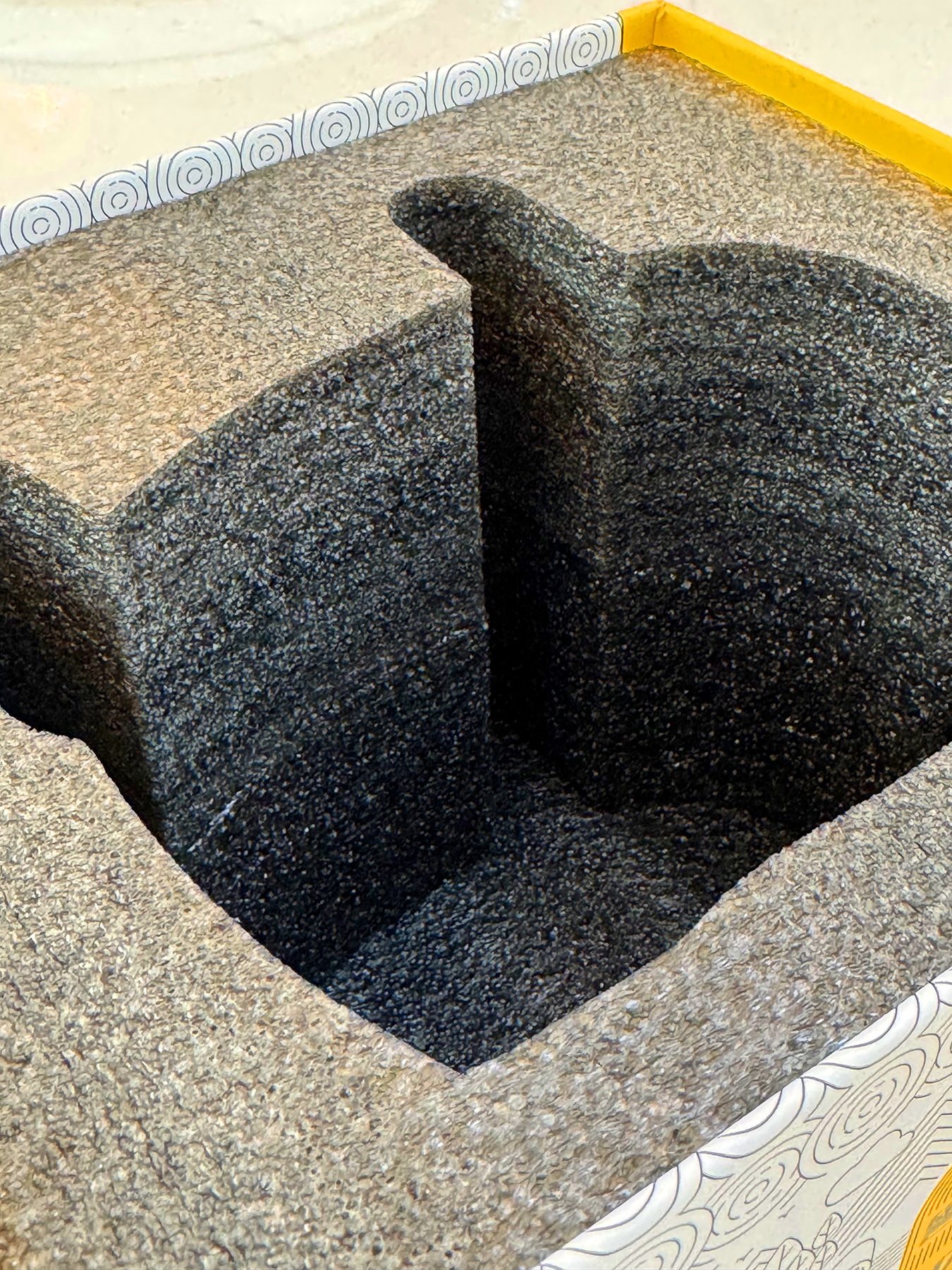

• Custom Lining: Precision die-cut to fit product; fixed, shockproof.



  Partition design, flocking wrapping available.
•
